Carmel Tunnel Bridges (Rupin Interchange Bridges)
Haifa, Israel
Project Description
​
The Carmel Tunnel project will alleviate traffic congestion in central Haifa by allowing vehicles to bypass the central part of the city. The $300 million project consists of two 5-km long tunnels through Mount Carmel, 5 conventional bridges, 6 segmental bridges, and 11 kilometers of roads which will link the tunnels to Israel's highway system.
__________________________________________________________________
Our Role
​
Hatcher Technical worked with co-designer and construction engineer McNary Bergeron & Johannesen to develop construction shop drawings.
​
Areas of the project that Hatcher Technical worked on included:
-
Precast superstructure segments
Location
​
Haifa, Israel
​
Owner
Build-Operate-Transfer (BOT) project
financed by Carmelton Group, Ltd.
​
Contractor
​
Ashtrom Engineering & Construction /
Solel Boneh Ltd. (Joint Venture)
​
Designer
​
ZZZ Engineering
McNary Bergeron & Associates
Total Contract Value
​
$300 million
​
Timeline
​
2006 - 2010
​
Construction Method
​
-
Precast segmental (three bridges)
-
Cast-in-place concrete piers
-
Balanced cantilever using ground based cranes
-
154 total precast segments
-
-

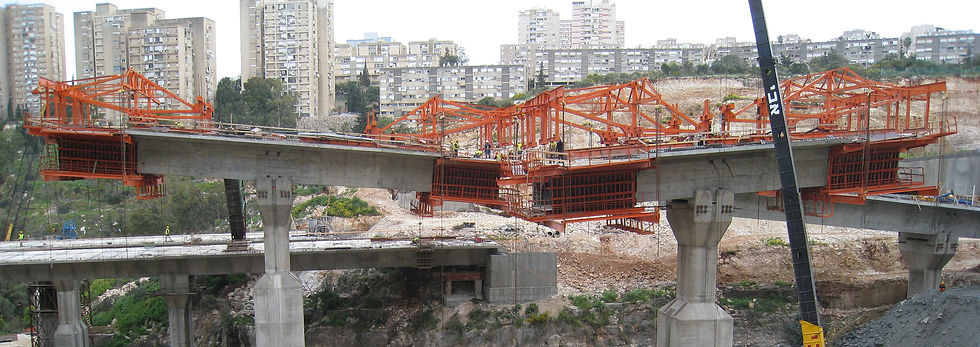

Cast-in-place segmental (three bridges)
-
Balanced cantilever using form travellers
-
151 total cast-in-place segments
-
